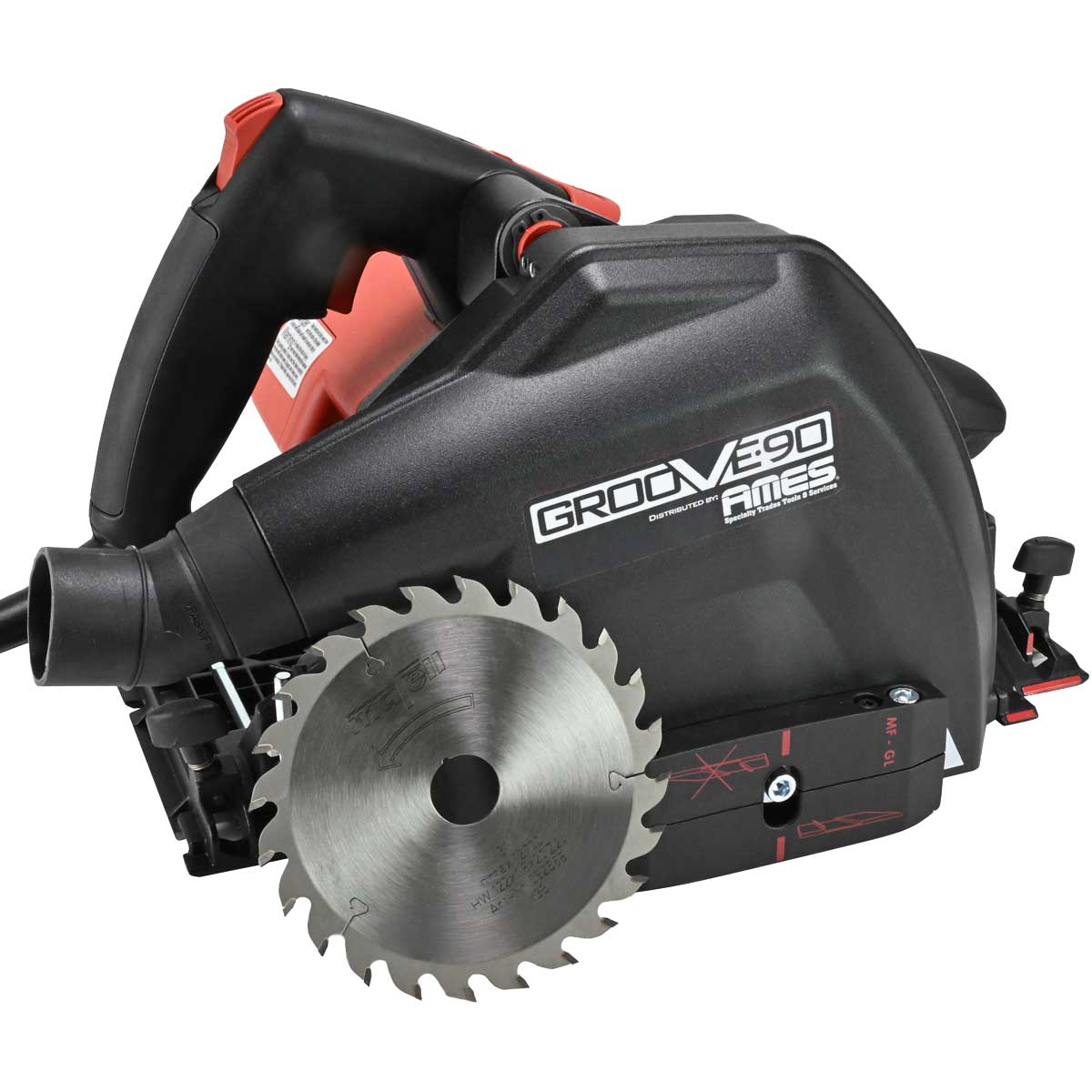

GROOVE-90: The Ultimate Portable Milling Machine


The GROOVE-90, distributed exclusively by AMES, is the ultimate portable milling machine for gypsum drywall panels, plywood, solid wood, aluminum, and more. This German-engineered multi-cutter system precisely cuts V-grooves, allowing drywall contractors to quickly form outside corners, soffits, column wraps, and other structures—without the need for corner bead, joint compound, or joint tape. The result is a flawless corner that won’t crack.

Lightweight and portable, the GROOVE-90 delivers the performance of a stationary machine. It can cut multiple kerfs to create radius profiles or even round columns from gypsum or plywood. Additionally, it can carve rectangular grooves to inlay stylish, functional LED lighting strips for high-end accents.

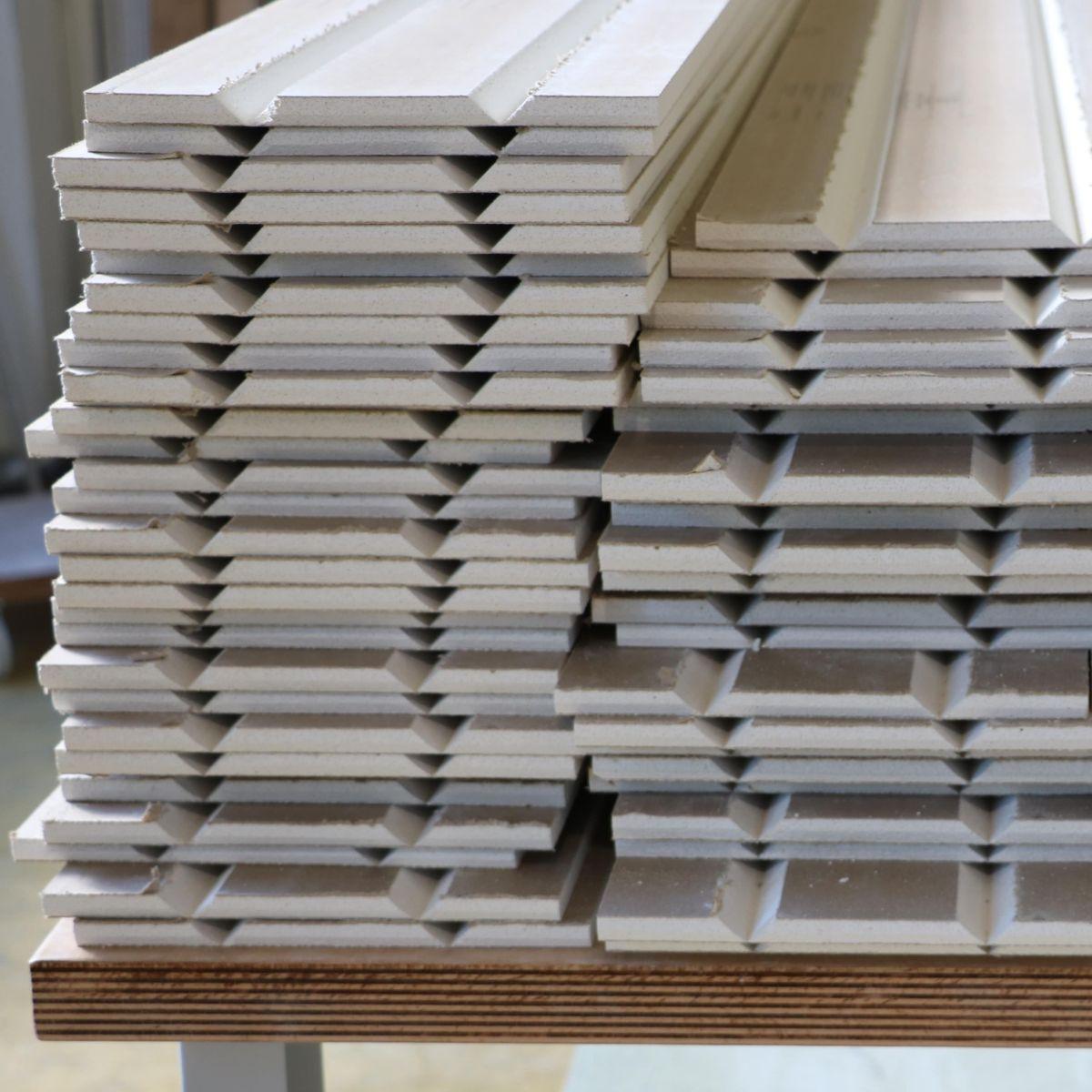

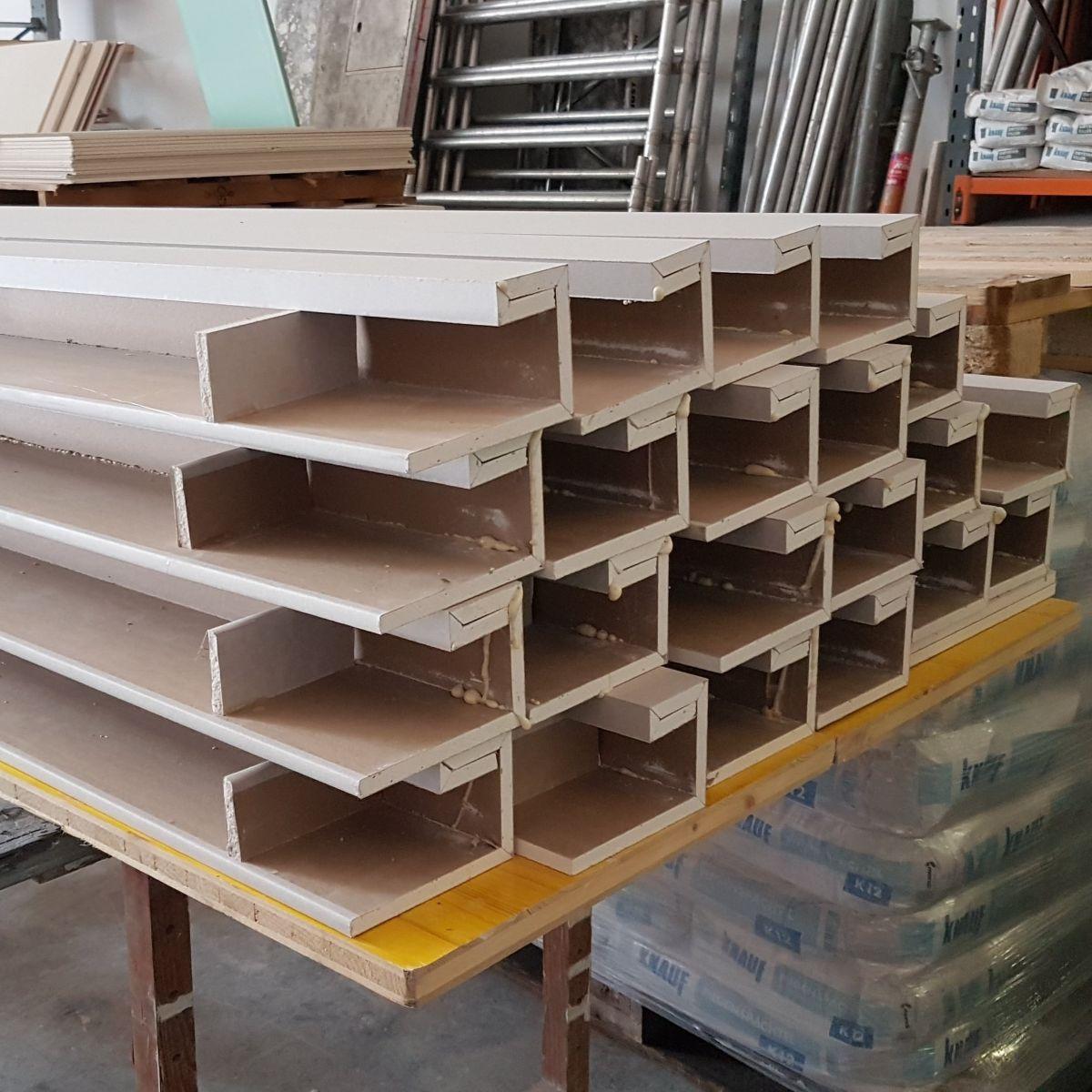

Pre-construction / prefabricated drywall profiles:

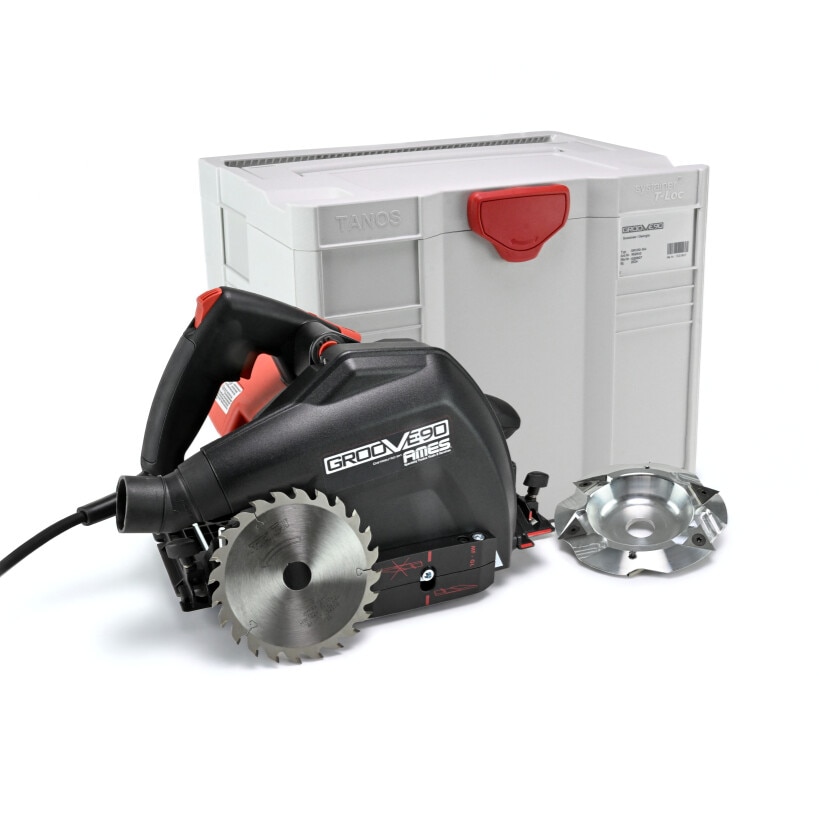

GROOVE-90 STARTER KIT

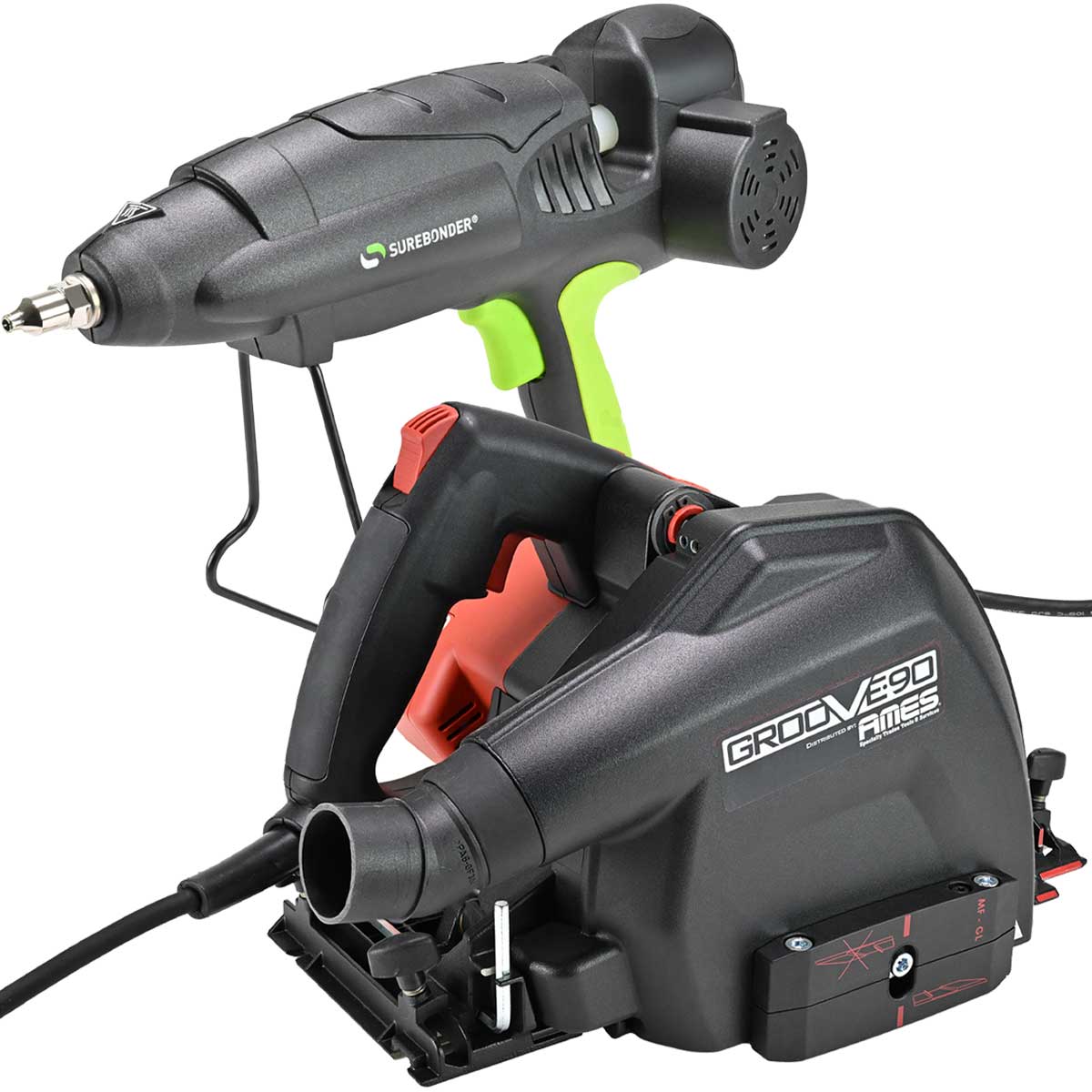

GROOVE-90 PRO KIT


  • GROOVE-90 Motor
  • 5.25-ft Guide Rail
  • 7.00-ft Guide Rail
  • Four Saw Blade Cutter
  • 90° Drywall Cutter
  • Single Saw Blade Cutter
  • 2 Sets of Positioning Guides
  • Vacuum Hose Adapter
  • Tool Carrying Case
  • GROOVE-90 Motor
  • 5.25-ft Guide Rail
  • 7.00-ft Guide Rail
  • Four Saw Blade Cutter
  • 90° Drywall Cutter
  • Single Saw Blade Cutter
  • 2 Sets of Positioning Guides
  • Vacuum Hose Adapter
  • Tool Carrying Case
  • 1000W Electric Hot Glue Gun
  • 25-lb Box Hot Glue Sticks
  • Bosch 14 Gallon Dust Extractor

SHOP NOW

SHOP NOW




GROOVE-90 FAQs

What is the GROOVE-90?

The GROOVE-90 is a compact, precision drywall milling machine designed to create perfect V-grooves, straight-edge cuts, and multi-cuts that form rounded corners, columns, angles, curves, and serpentine walls. It delivers accuracy in a portable, jobsite-ready tool

What materials can the GROOVE-90 cut?

Designed for drywall, the GROOVE-90 can also mill:

  • Hardwood
  • Plywood
  • Plastic
  • MDF
  • Aluminum
  • Paperless gypsum board
This versatility makes it ideal for prefabrication and preconstruction contractors.

How portable is the GROOVE-90?

The full GROOVE-90 kit weighs under 30 lbs, making it:

  • Truly portable
  • Easy for one-person operation
  • Compact enough to ride shotgun in a truck
Durable enough for both residential and commercial jobsites

Do I need a special table or workstation to use it?

No. The GROOVE-90 requires no special work surface and can be used directly on a drywall lift or any stable platform.

What types of cuts can the GROOVE-90 make?

  • Grooves (90° bends)
  • Straight cuts

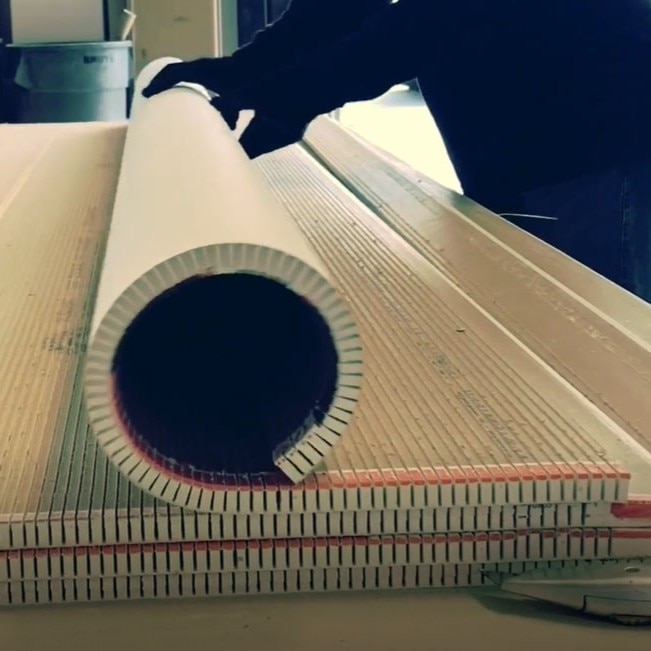

  • Multi-cuts for shaping curves, rounded corners, arches, columns, and serpentine walls

What drywall thicknesses does it work with?

  • 1/2-inch drywall
  • 3/4-inch drywall
The machine mills from the back while leaving the face paper intact for clean folding.

How long of a cut can the GROOVE-90 make?

Thanks to its configurable guide rail system, the GROOVE-90 can perform:

  • Short precision passes
  • Full-length cuts up to 14-foot sheets

What power does the GROOVE-90 require?

Standard 110V power — no special electrical setup needed.

What dust collection system should I use?

Any commercial shop vacuum works. For best results we recommend the Bosch 140AH Portable 14-Gallon HEPA Vacuum, sold in our Pro Kit.

How often do cutters or blades need replacement?

The GROOVE-90 cutter uses replaceable blades — you do not replace the full cutter attachment. Blades typically mill 3,000–5,000 linear feet depending on material and dust extraction.

What adhesive is best to use with the GROOVE-90?

The G90 kit includes:

  • A commercial hot glue gun
  • A case of glue sticks
This adhesive cures extremely strong, producing reinforced corners without needing corner bead. Cleaner cuts and fewer seams also mean less mud and less sanding

Where can I purchase the GROOVE-90 replacement blades, parts, and glue?

Need to produce even more prefabricated drywall profiles?

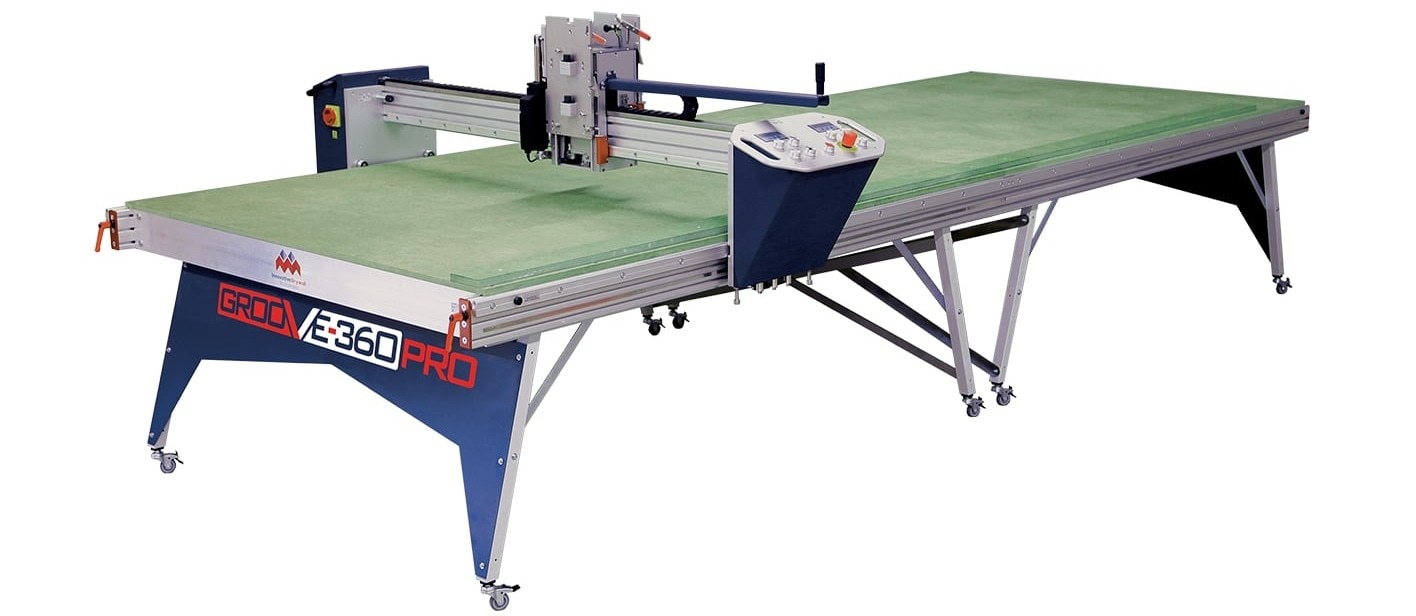

Check out the GROOVE-360PRO for the ultimate in drywall prefabrication.

Explore GROOVE-360PRO
